Primetals: Computer-vision-based AI to reduce downtime at Thyssenkrupp

by David Fleschen

Primetals Technologies has implemented a digital assistant for detecting strip cross cracks at Thyssenkrupp Hohenlimburg medium-wide hot-strip mill in Hagen, Germany. This digital assistant is Primetals Technologies first-ever computer-vision-based solution designed for its specific purpose.

The main benefits for thyssenkrupp are a reduction in downtime and wear related to the rolls of the hot strip mill. When a slab carries a cross-crack, it becomes visible in the roughing mill, and the size of the crack increases after each pass. When the transfer bars then enter the finishing mill, the crack may spread, further increase in size, and create holes in the rolled material. In the worst case, a defect like this can lead to cobbles in the finishing mill, with the risk of damaging the work rolls, backup rolls, and other production equipment.

To prevent transfer bars carrying strip cross cracks from entering the finishing mill, the cracks must be detected as early as possible in the process. In that way, operators can take action before a crack leads to equipment damage.

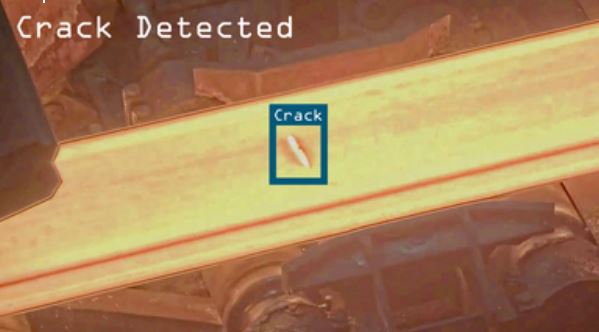

A camera located on the exit side of the roughing mill provides Primetals Technologies’ digital assistant with a live video stream. With the help of a machine learning model, which represents technology powered by artificial intelligence, the assistant processes the stream and checks for cracks. When the assistant detects a crack, it instantly alerts the operators. In addition, the information is transferred to the customer's intelligent business automation system for further analysis.

At thyssenkrupp Hohenlimburg, the digital assistant system will continuously optimize its performance, as it is self-learning and capable of identifying new types of cracks.

Headquartered in Hagen, Westphalia, thyssenkrupp Hohenlimburg employs a staff of around 900. The plant produces strip for the cold rolling industry as well as for direct processing, mainly for the automotive supply industry. Primetals Technologies has established a close partnership with the steel producer. An example of another current project is a research cooperation focused on fine-tuning process parameters using artificial intelligence algorithms. Among the recently completed projects is the modernization of the drive system of the plant’s hot-strip mill.

Source and Photo: Primetals
